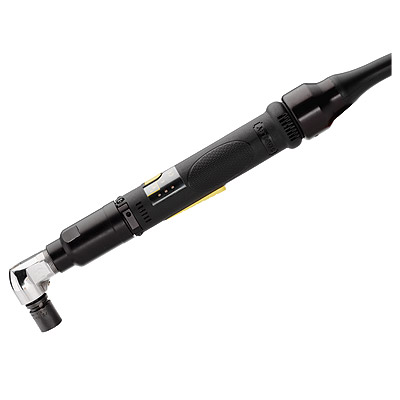

Apertadeira angular E-LA
Especificações Técnicas
| Modelo | Rotação (rpm) | Capacidade de Torque | Distância lateral ao centro (mm) | Altura do cabeçote angular (mm) | Comprimento (mm) | Peso (kg) | Encaixe (pol.) | ||
| (Nm) | (lb.ft) | Padrão | Opcional | ||||||
| E12LA10−4 | 2.325 | 0,6~4,0 | 0,4~3,0 | 10 | 30 | 271 | 0,7 | 1/4 | 3/8 |
| E12LA10−6 | 1.490 | 2,0~6,0 | 1,3~4,4 | 10 | 30 | 285 | 0,8 | 1/4 | 3/8 |
| E12LA13−10 | 1.080 | 3,0~10,0 | 2,2~7,4 | 13 | 33 | 287 | 0,8 | 3/8 | − |
| E12LA13−14 | 850 | 4,0~14,0 | 3,0~10,0 | 13 | 33 | 287 | 0,8 | 3/8 | − |
| E12LA13−18 | 590 | 5,5~18,0 | 4,0~13,0 | 13 | 33 | 287 | 0,8 | 3/8 | − |
| E12LA14−23 | 600 | 7,0~23,0 | 5,0~17,0 | 14 | 36 | 297 | 0,9 | 3/8 | − |
| E23LA13−11 | 1.500 | 3,5~11,0 | 2,5~8,0 | 13 | 33 | 435 | 1,5 | 3/8 | − |
| E23LA14−21 | 725 | 6,0~21,0 | 5,0~15,5 | 13 | 36 | 449 | 1,6 | 3/8 | − |
| E23LA14−31 | 500 | 9,0~31,0 | 7,0~23,0 | 14 | 36 | 449 | 1,6 | 3/8 | − |
| E33LA14−33 | 1.040 | 10,0~33,0 | 7,0~24,0 | 14 | 36 | 474 | 1,8 | 3/8 | − |
| E33LA18−46 | 750 | 14,0~46,0 | 10,0~34,0 | 17,5 | 39 | 490 | 2,0 | 3/8 | − |
| E33LA19−48 | 730 | 15,0~48,0 | 10,5~35,0 | 19 | 49 | 492 | 2,2 | 3/8 | − |
| E33LA19−60 | 570 | 18,0~60,0 | 13,0~44,0 | 19 | 49 | 492 | 2,2 | 1/2 | − |
| E34LA19−70 | 435 | 21,0~70,0 | 51,5 | 19 | 49 | 522 | 2,9 | 1/2 | − |
| E34LA22−101 | 335 | 30,0~101,0 | 22,0~74,5 | 22 | 49 | 530 | 3,0 | 1/2 | − |
| E34LA22−115 | 300 | 35,0~115,0 | 26,0~85,0 | 22 | 49 | 530 | 3,0 | 1/2 | − |
| E44LA19−70 | 635 | 21,0~70,0 | 15,0~51,5 | 19 | 49 | 531 | 3,3 | 1/2 | − |
| E44LA22−101 | 545 | 30,0~101,0 | 22,0~74,5 | 22 | 49 | 539 | 3,5 | 1/2 | − |
| E44LA22−120 | 360 | 63,0~120,0 | 27,0~88,5 | 22 | 49 | 539 | 3,5 | 1/2 | − |
| E45LA26−150 | 330 | 45,0~150,0 | 33,0~110,0 | 26 | 60 | 582 | 5,2 | 3/4 | − |
| E45LA26−201 | 265 | 60,0~201,0 | 49,0~148,0 | 26 | 60 | 582 | 5,2 | 3/4 | − |
| E43LA19−60 | 700 | 18,0~60,0 | 13,0~44,0 | 19 | 49 | 517 | 2,6 | 1/2 | − |
| E54LA22−120 | 470 | 63,0~120,0 | 27,0~88,5 | 22 | 49 | 742 | 4,75 | 1/2 | − |
| E55LA26−100 | 880 | 33,0~100,0 | 22,0~74,0 | 26 | 60 | 632 | 5,8 | 1/2 | − |
| E55LA26−167 | 510 | 50,0~167,0 | 37,0~123,0 | 26 | 60 | 632 | 5,8 | 3/4 | − |
| E55LA26−221 | 385 | 67,0~221,0 | 49,0~163,0 | 26 | 60 | 632 | 5,8 | 3/4 | − |
| E55LA32−337 | 250 | 101,0~337,0 | 75,0~248,0 | 32 | 73 | 639 | 6,5 | 3/4 | − |
| E55LA32−401 | 200 | 120,0~401,0 | 89,0~295,0 | 36 | 66 | 639 | 6,5 | 3/4 | − |
