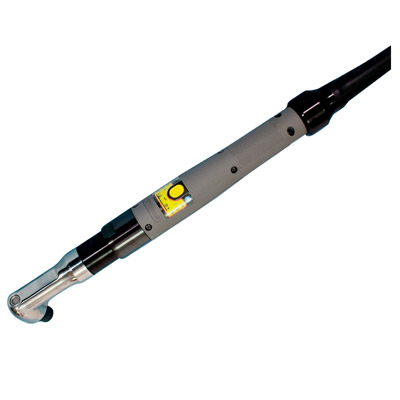

Apertadeira angular EC-LA
Especificações Técnicas
| Modelo | Rotação (rpm) |
Capacidade de Torque | Distancia Lateral ao Centro (mm) |
Altura do cabeçote angular (mm) |
Comprimento (mm) |
Peso (kg) |
Quadrado de Encaixe (pol.) |
|
| (Nm) | (lb.ft) | |||||||
| EC02LA10−3 | 1.445 | 0,6~3,0 | 0,4~2,0 | 10,0 | 30 | 320 | 0,8 | 1/4 |
| EC02LA10−6 | 690 | 1,2~6,0 | 0,88~4,4 | 10,0 | 30 | 320 | 0,8 | 1/4 |
| EC02LA13−6 | 730 | 1,2~6,0 | 0,88~4,4 | 13,0 | 33 | 323 | 0,8 | 3/8 |
| EC02LA13−9 | 500 | 1,8~9,0 | 1,3~6,5 | 13,0 | 33 | 323 | 0,8 | 3/8 |
| EC12LA10−6 | 1.890 | 1,2~6,0 | 0,88~4,4 | 10,0 | 30 | 320 | 0,8 | 1/4 |
| EC12LA13−10 | 1.375 | 2,0~10,0 | 1,4~7,0 | 13,0 | 33 | 323 | 0,8 | 3/8 |
| EC12LA13−14 | 955 | 2,8~14,0 | 2,0~10,0 | 13,0 | 33 | 323 | 0,8 | 3/8 |
| EC12LA13−18 | 745 | 3,6~18,0 | 2,6~13,0 | 13,0 | 33 | 323 | 0,8 | 3/8 |
| EC12LA14−15 | 910 | 3,0~15,0 | 2,2~11,0 | 14,0 | 36 | 332 | 0,8 | 3/8 |
| EC12LA14−23 | 565 | 4,6~23,0 | 3,4~17,0 | 14,0 | 36 | 348 | 0,8 | 3/8 |
| EC22LA13−18 | 1.205 | 3,6~18,0 | 2,6~13,0 | 13,0 | 33 | 345 | 1,1 | 3/8 |
| EC22LA14−21 | 1.010 | 4,2~21,0 | 3,1~15,5 | 14,0 | 36 | 353 | 1,1 | 3/8 |
| EC22LA14−33 | 630 | 6,6~33,0 | 4,8~24,0 | 14,0 | 36 | 368 | 1,2 | 3/8 |
| EC22LA18−42 | 455 | 8,4~42,0 | 6,2~31,0 | 17,5 | 39 | 396 | 1,5 | 3/8 |
| EC33LA14−30 | 1.445 | 6,0~30,0 | 4,4~22,0 | 14,0 | 36 | 417 | 1,4 | 3/8 |
| EC33LA14−35 | 1.260 | 7,0~35,0 | 5,2~26,0 | 14,0 | 36 | 417 | 1,4 | 3/8 |
| EC33LA18−40 | 1.040 | 8,0~40,0 | 6,0~30,0 | 17,5 | 39 | 445 | 1,5 | 3/8 |
| EC33LA18−46 | 910 | 9,2~46,0 | 6,8~34,0 | 17,5 | 39 | 445 | 1,5 | 3/8 |
| EC33LA19−48 | 875 | 9,6~48,0 | 7,0~35,0 | 19,0 | 49 | 445 | 1,8 | 3/8 |
| EC33LA19−60 | 690 | 12,0~60,0 | 8,8~44,0 | 19,0 | 49 | 445 | 1,8 | 1/2 |
| EC34LA19−70 | 630 | 14,0~70,0 | 10,2~51,0 | 19,0 | 49 | 465 | 2,1 | 1/2 |
| EC34LA19−80 | 520 | 16,0~80,0 | 11,8~59,0 | 19,0 | 49 | 465 | 2,1 | 1/2 |
| EC34LA22A−70 | 605 | 14,0~70,0 | 10,2~51,0 | 22,0 | 50 | 503 | 2,7 | 1/2 |
| EC34LA22A−90 | 500 | 18,0~90,0 | 13,2~66,0 | 22,0 | 50 | 503 | 2,7 | 1/2 |
| EC34LA22A−120 | 305 | 24,0~120,0 | 17,7~88,5 | 22,0 | 50 | 518 | 2,7 | 1/2 |
| EC34LA26−180 | 235 | 36,0~180,0 | 26,6~133,0 | 26,0 | 60 | 541 | 3,8 | 3/4 |
| EC44LA19−66 | 955 | 13,2~66,0 | 9,8~49,0 | 19,0 | 49 | 490 | 2,3 | 1/2 |
| EC44LA19−80 | 790 | 16,0~80,0 | 11,8~59,0 | 19,0 | 49 | 490 | 2,3 | 1/2 |
| EC44LA22A−100 | 610 | 20,0~100,0 | 14,8~74,0 | 22,0 | 50 | 528 | 2,9 | 1/2 |
| EC44LA22A−120 | 450 | 24,0~120,0 | 17,7~88,5 | 22,0 | 50 | 528 | 2,9 | 1/2 |
| EC44LA26−180 | 355 | 36,0~180,0 | 26,6~133,0 | 26,0 | 60 | 566 | 3,5 | 3/4 |
| Obs: Barra de reação standard nos modelos de alto torque. Suporte de sustentação opcional. | ||||||||
