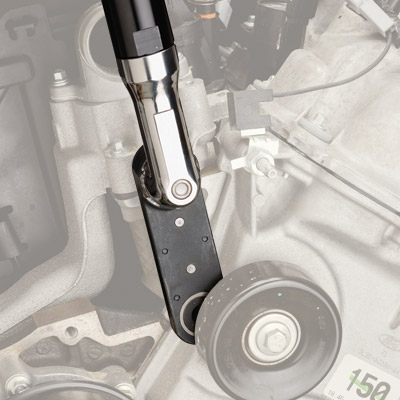

Apertadeira Crowfoot E-LC
Especificações Técnicas
| Modelo | Rotação (rpm) | Capacidade de Torque | Distância lateral ao centro (mm) | Raio frontal do cabeçote (mm) | Espessura do cabeçote (mm) | Comprimento (mm) | Peso (kg) | Sextavado máximo (mm) | |
| (Nm) | (lb ft) | ||||||||
| E12LC8−13 | 585 | 4,0~13,0 | 3,0~9,5 | 13,0 | 13,0 | 16,0 | 347 | 1,0 | 13 |
| E12LC106−14 | 585 | 4,0~14,0 | 3,0~10,0 | 13,0 | 13,0 | 16,0 | 367 | 1,1 | 13 |
| E12LC379−30 | 660 | 9,0~30,0 | 7,0~22,0 | 16,0 | 13,5 | 15,0 | 352 | 1,2 | 13 |
| E23LC8−16 | 660 | 5,0~16,0 | 3,5~12,0 | 13,0 | 13,0 | 16,0 | 510 | 1,7 | 13 |
| E23LC106−16 | 660 | 5,0~16,0 | 3,5~12,0 | 13,0 | 13,0 | 16,0 | 530 | 1,8 | 13 |
| E23LC69−15 | 745 | 4,5~15,0 | 3,5~11,0 | 13,5 | 13,5 | 16,0 | 532 | 2,3 | 13 |
| E33LC69−27 | 845 | 8,0~27,0 | 6,0~20,0 | 13,5 | 13,5 | 16,0 | 557 | 2,4 | 13 |
| E23LC246−22 | 505 | 6,5~22,0 | 5,0~16,0 | 16,0 | 16,0 | 20,5 | 535 | 2,4 | 13 |
| E33LC246−38 | 570 | 12,0~38,0 | 9,0~28,0 | 16,0 | 16,0 | 20,5 | 560 | 2,5 | 13 |
| E23LC13−18 | 590 | 5,5~18,0 | 4,0~13,0 | 16,0 | 13,5 | 20,5 | 533 | 2,4 | 13 |
| E33LC13−30 | 755 | 9,0~30,0 | 6,5~22,0 | 16,0 | 13,5 | 20,5 | 558 | 2,5 | 13 |
| E23LC35−16 | 660 | 5,0~16,0 | 3,5~12,0 | 20,5 | 20,5 | 14,0 | 559 | 2,7 | 19 |
| E33LC35−31 | 750 | 9,0~31,0 | 7,0~23,0 | 20,5 | 20,5 | 14,0 | 585 | 2,9 | 19 |
| E33LC29−35 | 675 | 10,5~35,0 | 8,0~26,0 | 20,5 | 20,5 | 14,0 | 549 | 2,7 | 19 |
| E34LC10−49 | 490 | 15,0~49,0 | 11,0~36,0 | 20,5 | 20,5 | 28,0 | 625 | 3,5 | 19 |
| E44LC10−88 | 355 | 26,0~88,0 | 20,0~65,0 | 20,5 | 20,5 | 28,0 | 634 | 3,8 | 19 |
| E44LC31−102 | 355 | 31,0~102,0 | 23,0~75,0 | 20,5 | 20,5 | 28,0 | 602 | 3,6 | 19 |
| E45LC21−216 | 155 | 65,0~216,0 | 48,0~159,0 | 29,0 | 29,0 | 31,0 | 693 | 6,1 | 27 |
