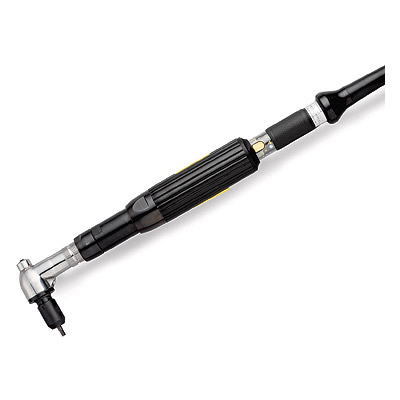

Apertadeira Hold and Drive E-LH
Especificações Técnicas
| Modelo | Rotação (rpm) | Capacidade de Torque | Distância Lateral ao Centro (mm) | Comprimento (mm) | Altura do Cabeçote com Soquete (mm) | Peso (kg) | Curso da Haste (pol.) | |
| (Nm) | (lb.ft) | |||||||
| E23LH18V1−35 | 345 | 11~35 | 8,0~26,0 | 17,5 | 464 | 109 | 2,0 | 1 |
| E33LH18V1−46 | 750 | 14~46 | 10,0~34,0 | 17,5 | 464 | 109 | 2,2 | 1 |
| E23LH18V2−35 | 345 | 11~35 | 8,0~26,0 | 17,5 | 464 | 142 | 2,1 | 2 |
| E33LH18V2−46 | 750 | 14~46 | 10,0~34,0 | 17,5 | 464 | 142 | 2,3 | 2 |
| E34LH22V1−110 | 300 | 33~110 | 24,0~81,0 | 22,0 | 530 | 118 | 3,4 | 1 |
| E34LH22V1−66 | 535 | 20~66 | 16,0~48,5 | 22,0 | 530 | 118 | 3,4 | 1 |
| E34LN22V1−110 | 300 | 33~110 | 24,0~81,0 | 22,0 | 530 | 99 | 3,4 | 1 |
| E34LN22V1−66 | 535 | 20~66 | 16,0~48,5 | 22,0 | 530 | 99 | 3,4 | 1 |
| E34LH22V2−110 | 300 | 33~110 | 24,0~81,0 | 22,0 | 530 | 144 | 3,5 | 2 |
| E34LH22V2−66 | 535 | 20~66 | 16,0~48,5 | 22,0 | 530 | 144 | 3,5 | 2 |
| E44LH22V1−110 | 480 | 33~110 | 24,0~81,0 | 22,0 | 539 | 144 | 3,8 | 1 |
| E44LH22V1−66 | 680 | 20~66 | 16,0~48,5 | 22,0 | 539 | 144 | 3,8 | 1 |
| E44LN22V1−110 | 480 | 33~110 | 24,0~81,0 | 22,0 | 539 | 99 | 3,8 | 1 |
| E44LN22V1−66 | 680 | 20~66 | 16,0~48,5 | 22,0 | 539 | 99 | 3,8 | 1 |
| E44LH22V2−110 | 480 | 33~110 | 24,0~81,0 | 22,0 | 539 | 144 | 3,8 | 2 |
| E44LH22V2−66 | 680 | 20~66 | 16,0~48,5 | 22,0 | 539 | 144 | 3,8 | 2 |
| E45LH26V1−143 | 330 | 43~143 | 32,0~105,0 | 26,0 | 582 | 114 | 4,8 | 1 |
| E45LH26V1−191 | 265 | 57~191 | 42,0~141,0 | 26,0 | 582 | 114 | 4,8 | 1 |
| E45LN26V1−143 | 330 | 43~143 | 32,0~105,0 | 26,0 | 582 | 96 | 4,8 | 1 |
| E45LN26V1−191 | 265 | 57~191 | 42,0~141,0 | 26,0 | 582 | 96 | 4,8 | 1 |
| E45LH26V2−143 | 330 | 43~143 | 32,0~105,0 | 26,0 | 582 | 140 | 4,9 | 2 |
| E45LH26V2−191 | 265 | 57~191 | 42,0~141,0 | 26,0 | 582 | 140 | 4,9 | 2 |
| E55LH26V1−210 | 385 | 63~210 | 47,0~155,0 | 26,0 | 632 | 114 | 5,4 | 1 |
| E55LH26V1−95 | 880 | 29~95 | 21,0~70,0 | 26,0 | 632 | 114 | 5,4 | 1 |
| E55LN26V1−210 | 385 | 63~210 | 47,0~155,0 | 26,0 | 632 | 96 | 5,4 | 1 |
| E55LN26V1−95 | 880 | 29~95 | 21,0~70,0 | 26,0 | 632 | 96 | 5,4 | 1 |
| E55LH26V2−210 | 385 | 63~210 | 47,0~155,0 | 26,0 | 632 | 140 | 5,5 | 2 |
| E55LH26V2−95 | 880 | 29~95 | 21,0~70,0 | 26,0 | 632 | 140 | 5,5 | 2 |
| E55LH32V1−320 | 250 | 96~320 | 71,0~236,0 | 32,0 | 639 | 155 | 6,1 | 1 |
| E55LH32V1−380 | 200 | 114~380 | 84,0~280,0 | 32,0 | 639 | 155 | 6,1 | 1 |
| E55LH32V2−320 | 250 | 96~320 | 71,0~236,0 | 32,0 | 639 | 180 | 6,2 | 2 |
| E55LH32V2−380 | 200 | 114~380 | 84,0~280,0 | 32,0 | 639 | 180 | 6,2 | 2 |
